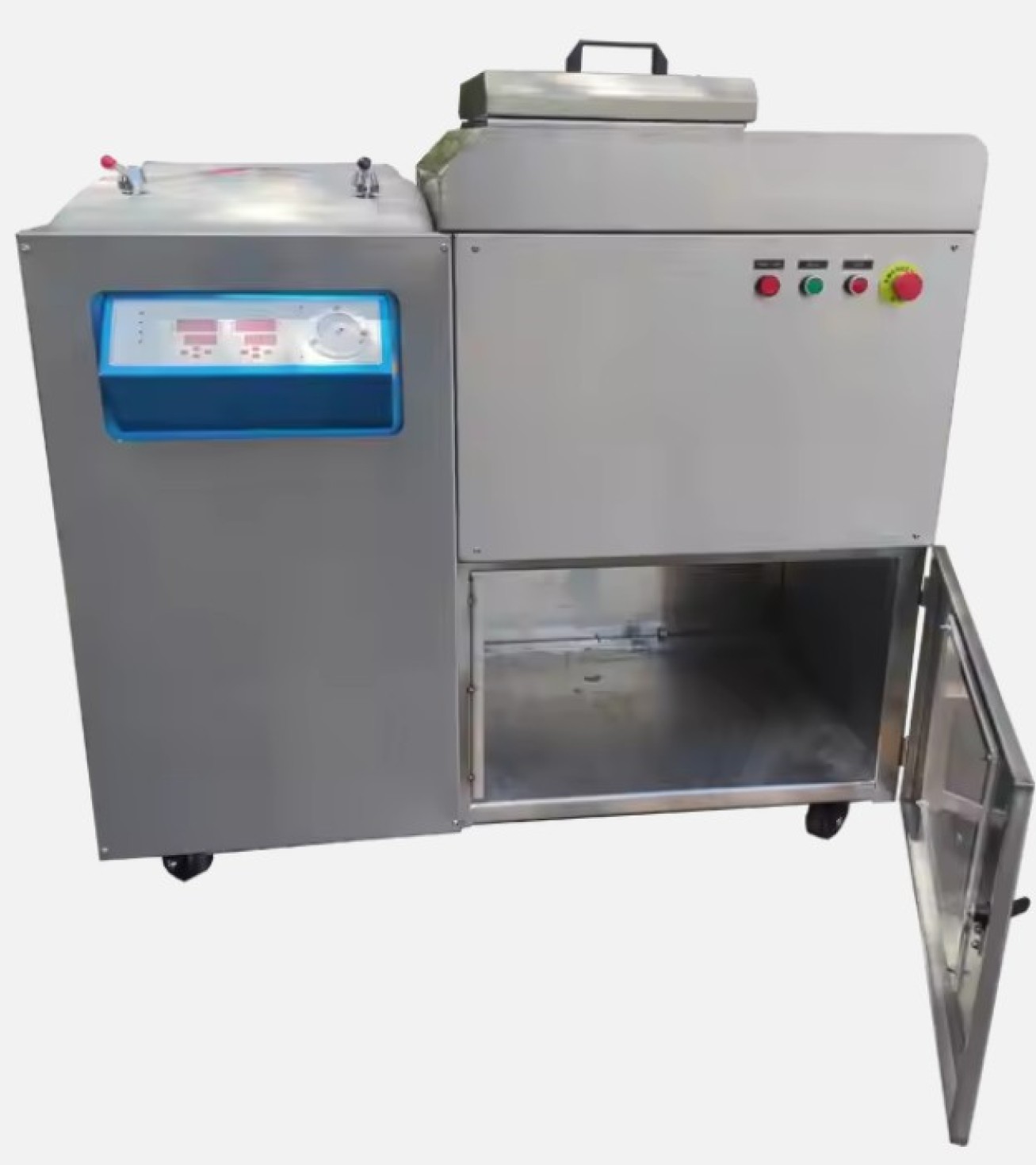

The integrated medical waste sterilization and shredding equipment is designed for use in laboratories, dialysis centers, clinics, and hospitals.

It operates exclusively with steam and electricity, providing an efficient and eco-friendly solution for treating infectious waste directly at the source, such as: waste bags, rigid containers, sharps, gloves, laboratory materials, glass, plastic/rubber tubes, and filters.

The process is largely automated, with the exception of the manual transfer of sterilized waste from the sterilizer to the shredder. Depending on the capacity, a complete cycle lasts between 30 and 60 minutes and allows processing of up to 30 liters of waste.

After treatment, the waste becomes non-toxic, is shredded, and can be safely disposed of as municipal waste. The stainless steel chamber complies with the European Pressure Equipment Directive, and the dual-shaft industrial shredder with self-reversing blades reduces waste volume by up to 80%.

Steam is generated internally, and the system is equipped with a simple control panel where parameters such as sterilization time, chamber temperature, and pressure can be set manually. The system provides a safe, reliable, and fully automated process.

The equipment is equipped with multiple safety features: safety valve, thermostat, temperature and pressure sensors, water level detector, and software protections. Built to the highest standards of quality, safety, and operational performance.

Shredder:
Motor power: 2.2 KW
Chamber dimensions: 326×216×165 mm
Rotor blade diameter: Φ176 mm
Rotor blade thickness: 15 mm
Shaft speed: 22 RPM
Number of rotor blades: 14 pieces
Recommended feed material size: 250×250 mm
Automatic reverse for jam release: Yes
Resulting flake size: < 30 mm

Sterilizer:
Heating power: 3 KW
Sterilization temperature: +5~134°C (optional)
Heat holding duration: 1–99.59 min/hour
Internal temperature difference: < 1°C
Chamber size: Ø 388 × 300 mm
Chamber volume: 35 L
Sterilization pressure: ≤ 0.17 MPa
Microbial inactivation: 99.99%
Process: Sterilization before shredding

Complete Equipment:
Machine dimensions: 1300×700×1200 mm
Machine weight: 450 KG
Operating voltage: 220V / 50Hz / 1 phase or customizable
